SAVOX HV STD size 30kg/cm, Digital Brushless Motor Servo, 0.07sec, 8.4V, 69g, 40.3x20.2x38.5mm
by Savox
SKU SB-2274SG-BE
Sold out
$219.00

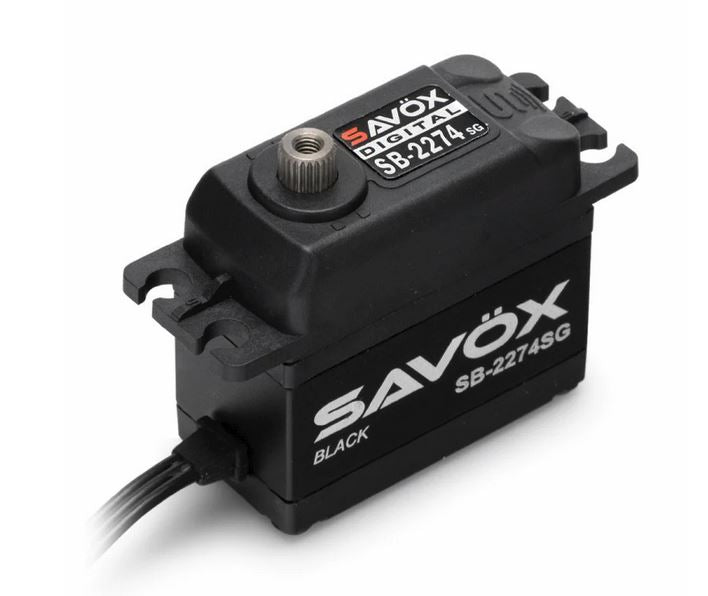

The Savox SB-2274SG-BE High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.
Features:
- Unique steel gear train.
- Capable of HV operation.
- Brushless motor for smooth operation and efficiency.
- Ideal for 1/10, 1/8 buggies, and large scale aircraft.
- SSR Mode Accepted
Specifications:
- Torque @ 7.4v - 25.0kg/347.2oz-in
- Torque @ 8.4v - 30.0kg/416.6oz-in
- Speed @ 7.4v - 0.08 sec/60 deg
- Speed @ 8.4v - 0.07 sec/60 deg
- Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
- Weight: 69.0g
Technical Data:
Operating Temperature: 14° - 122°F (-10° - 50°C)Running Current (no load): 180mA @6.0V, 220mA @7.4VStall Current (at locked): 6000mA @6.0V, 7400mA @7.4VIdle Current: 5mA @6.0V, 5mA @7.4VWire Length: 300 +/- 5mmOutput Gear Spline: 25 ToothBearings: 2BBOperating Travel: 100° (1000 → 2000 µ second)Neutral Position: 1500 µ secondPulse Width Range: 800 → 2200 µ secondMaximum Travel: Appx 130° (900 → 2100 µ second)Refresh Rate: 333 HzMotor Type: Brushless
