XRAY X1'27 - ALU EDITION - 1/10 FORMULA
by XRAY
SKU XRA-370710
$899.00
All New Features 2027 - PART 1

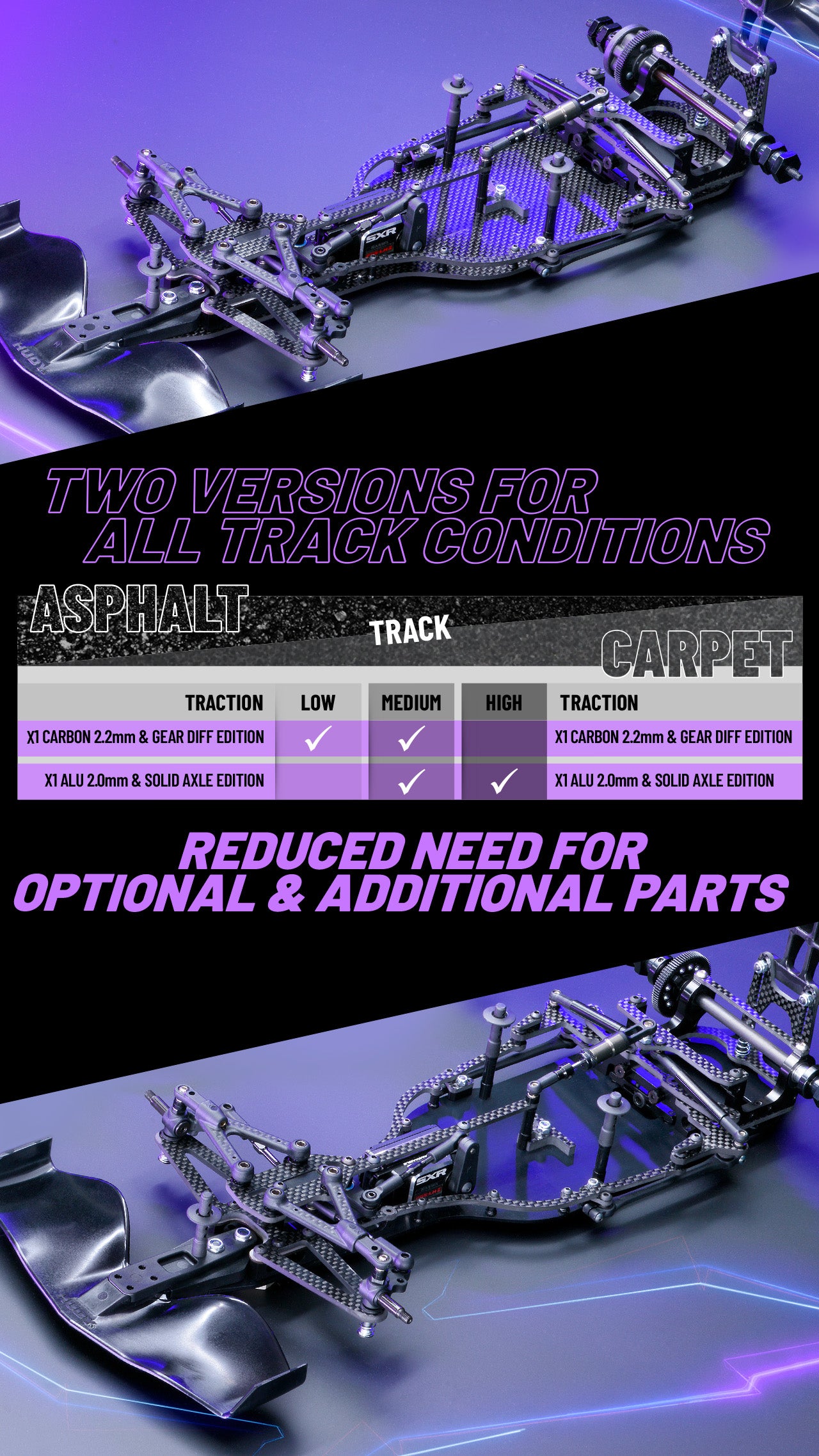

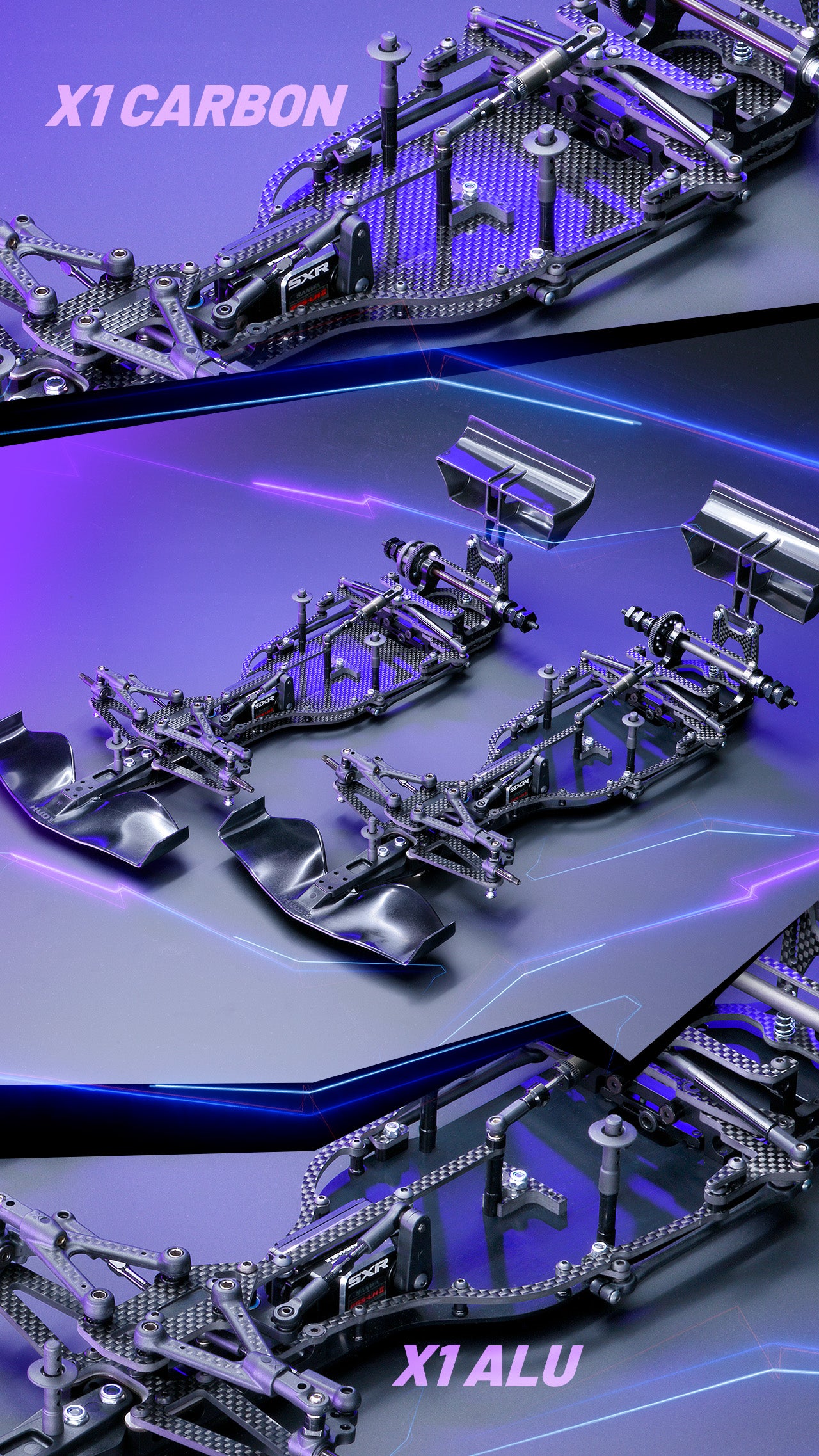

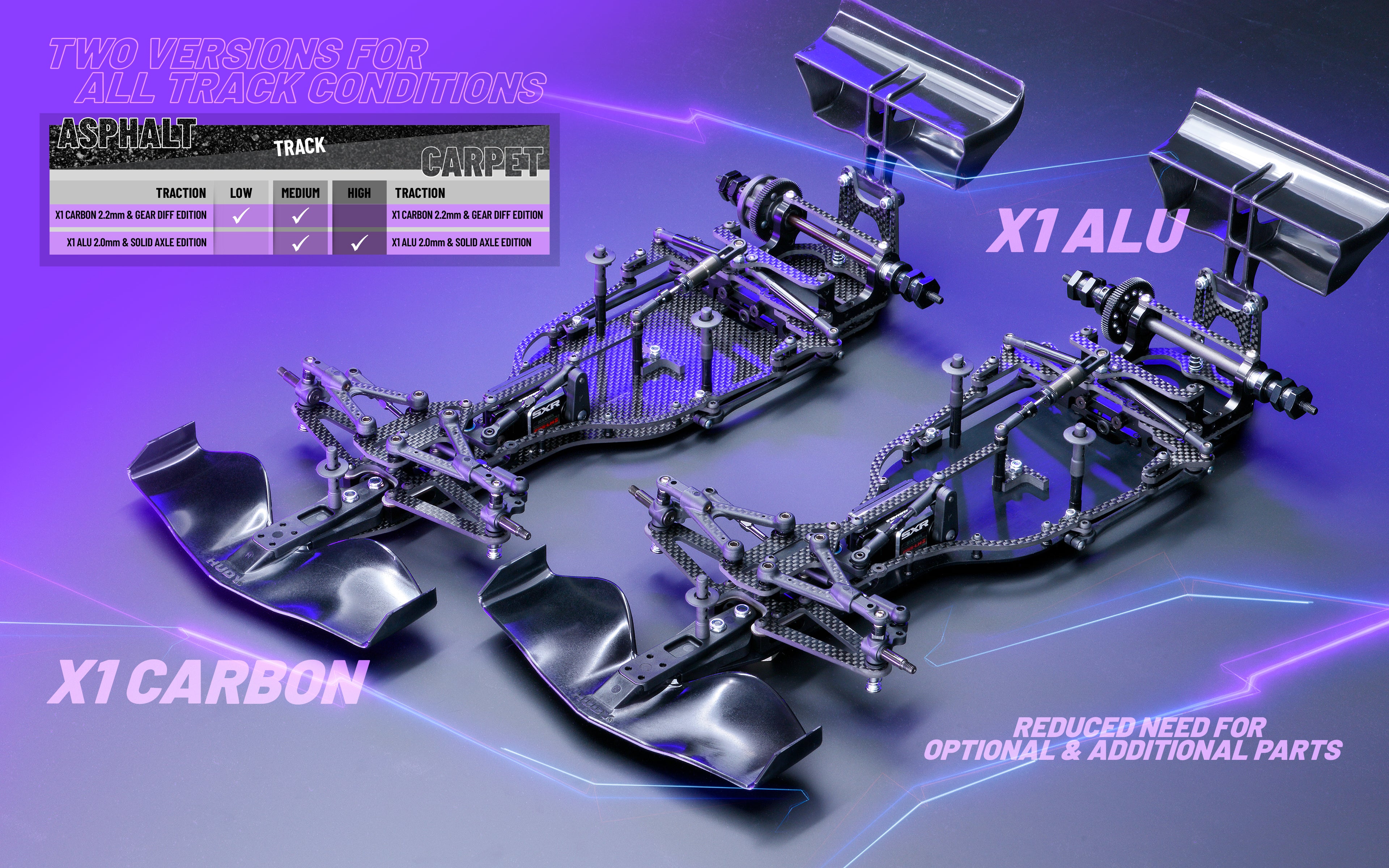

- Available in Alu & Carbon versions for optimized performance on different track surfaces without optional parts
- Carpet-specific Aluminum Version features a 2.0mm aluminum chassis and solid axle
- Asphalt-specific Carbon Version features a 2.2mm carbon chassis and gear differential
- New HUDY composite front wing developed with Ehrbar Engineering delivers outstanding steering response and excellent stability
- Redesigned one-piece chassis works with the new front suspension and features increased rear stiffness for improved stability and traction
- Adjustable front bulkheads offer multiple flex tuning options
- Shorter one-piece front lower arm creates a cleaner and more attractive front suspension design
- Redesigned front aluminum top deck mount matches the new front suspension layout
- Narrower carbon arm mount plate improves cornering speed and connects directly to the carbon top deck
- Reengineered front suspension design enables easier ride height, camber gain, and droop adjustments, smoother damping, and more convenient oil refilling
- Larger-diameter kingpin with integrated oil refill holes improves damping smoothness
- Larger and longer front spring improves damping precision and performance
- New camber gain adjustment system allows easy tuning by adding or removing shims above the kingpin
- Updated downstop screw system replaces clips for easier and more precise droop adjustment
- Revised lower pivot ball improves damping performance by retaining oil on the kingpin longer
- Redesigned front wheel axle matches the new kingpin system
- Redesigned composite steering block matches the new kingpin system
- New ride height shim system allows easier ride height adjustment using shims between the lower carbon arm and bulkheads
- Relocated carbon POD lower plates move the motor 1.5mm to the right for improved weight balance
- Redesigned bulkheads work with the new POD assembly and rear aluminum holder
- Revised carbon rear POD upper plate matches the 1.5mm-shifted POD position
- Innovative rear aluminum holder enables independent battery plate mounting for a lower center of gravity, cleaner design, and easier battery removal
- Rear aluminum holder includes battery stopper mounting holes for easier battery position adjustment
- Raised carbon rear brace sits 1mm higher for a wider side spring preload adjustment range
- Integrated upstop set screw system in the carbon rear brace allows POD upstop adjustment
- Adjustable upstop system controls rear POD travel limit for improved stability and cornering speed in high-traction conditions
- Upgraded C1.2 side springs improve performance straight out of the box without optional parts
- Lower-mounted carbon battery holders lowers center of gravity and simplifies battery mounting
- Lowered side link holders by 2mm allow lower side brace mounting for a lower center of gravity
- New servo posts enable top deck mounting for additional flex adjustment options
- Fixed-mount rear aluminum wing holder improves wing durability while reducing weight and lowers center of gravity
- Lightweight carbon wing mount redesigned for the fixed mounting system with lower weight and lowered center of gravity
- Lowered aluminum side brace mounts by 2mm lowers center of gravity and simplfies battery access
- Redesigned carbon side braces integrate with the new front bulkheads
View the full presentation here - XRAY X1’27 Presentation
